How do double head hub bolts differ from standard bolts?

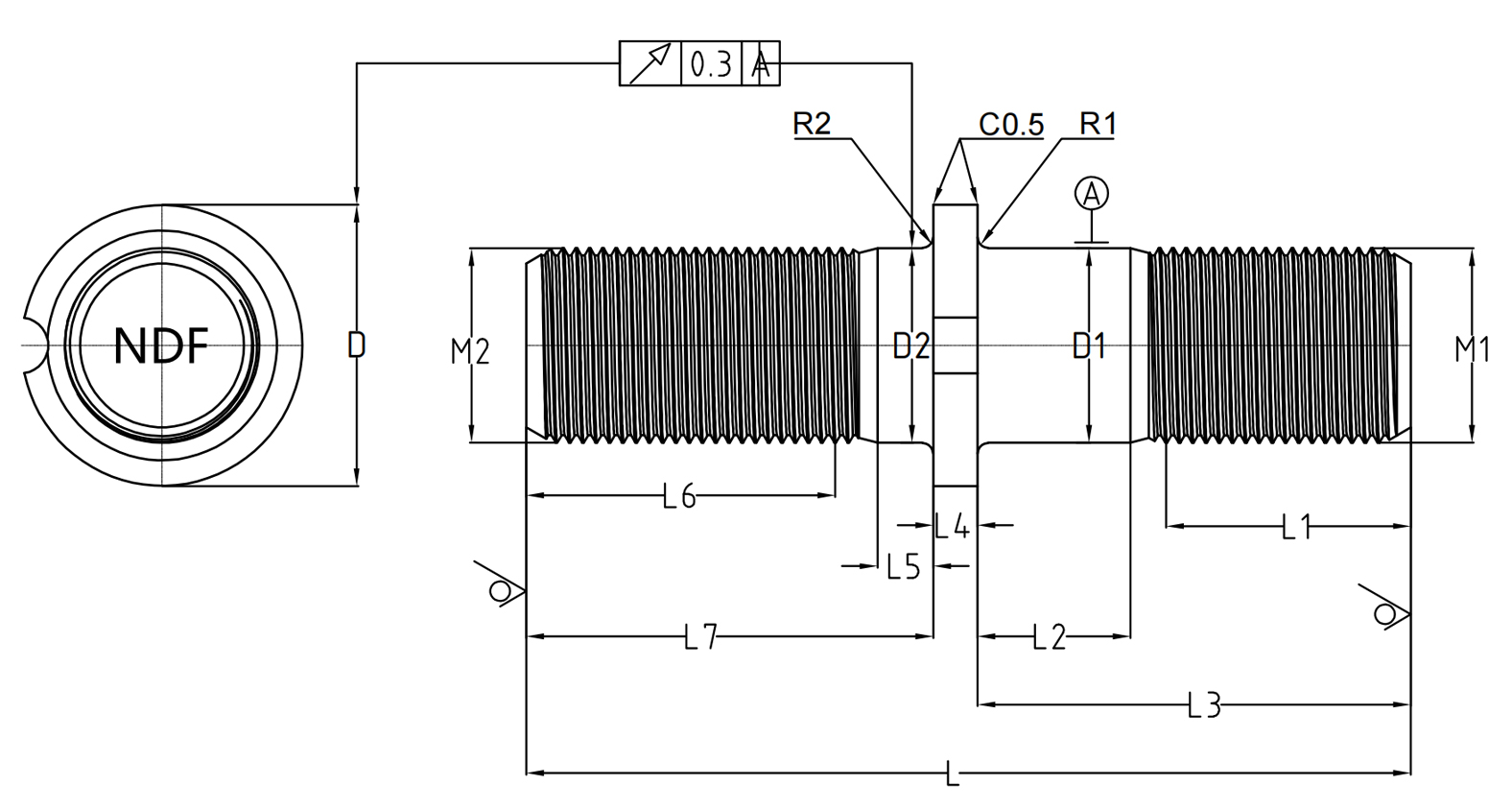

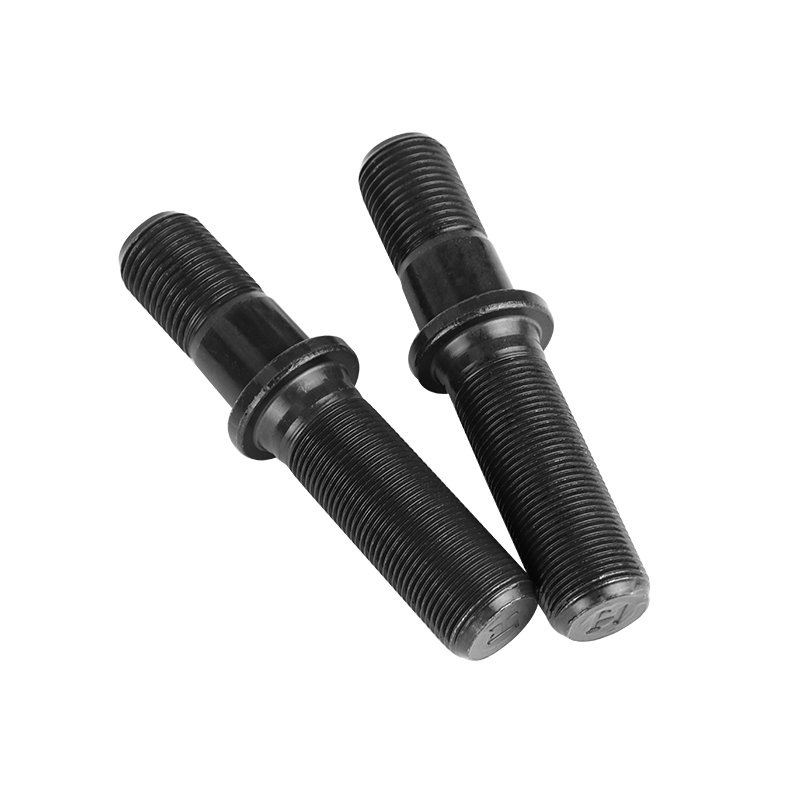

Double-headed hub bolts, also known as double-ended studs or double-end bolts, differ from standard bolts in their design and application. Here are some key differences between double-headed hub bolts and standard bolts:
Dual Threaded Ends: Double-headed hub bolts have threaded ends on both sides, which means they have two nuts that can be tightened onto the bolt. This design allows for the fastening of two components or surfaces simultaneously, making them useful in various applications where alignment and secure connections are critical.
Length and Tolerance: Double-headed hub bolts are typically longer than standard bolts, as they need to pass through two components or surfaces and leave enough thread on both ends for securing with nuts. The length and tolerance of double-headed hub bolts are carefully matched to the specific application to ensure proper engagement and secure fastening.
Stud and Nut Configuration: In a typical application, one end of the double-headed hub bolt is threaded into one component, while the other end is threaded into the second component. Nuts are then tightened onto both ends to secure the components together. This configuration is often used in automotive wheel hubs and other applications where precise alignment and secure fastening are essential.
Torque Distribution: Double-headed hub bolts can distribute torque and axial loads more evenly between two components, reducing the risk of uneven stress or distortion. This can help improve the overall stability and reliability of the connection.
Specialized Applications: Double-headed hub bolts are commonly used in automotive and machinery applications, especially for mounting wheels to vehicle axles. They are designed to provide a secure and balanced connection that can withstand the forces and vibrations encountered during operation.
How are double head hub bolts installed and tightened?
Double-headed hub bolts are typically used in automotive and mechanical applications, such as securing wheels to a vehicle hub. These bolts have two distinct heads: one hexagonal head and one round head. The round head is usually used to align the bolt during installation and to prevent it from rotating while you tighten the hexagonal head. Here's how you can install and tighten double-headed hub bolts:
Preparation: Ensure that you have the correct size and type of double-headed hub bolt for your application. Check the manufacturer's specifications or vehicle manual for the proper torque values.
Thread Preparation: Inspect the threads on both the bolt and the hub to make sure they are clean and free of debris or corrosion. If necessary, clean the threads using a wire brush or thread chaser.
Alignment: Insert the round head of the bolt into the hole in the hub. The round head should fit snugly into the hole, preventing the bolt from rotating as you tighten it.
Hand Tightening: Begin by hand-threading the hexagonal head of the bolt onto the corresponding threaded hole in the hub. Turn the bolt clockwise (righty-tighty) to tighten it. Make sure it's threaded properly to avoid cross-threading, which can damage the threads.
Torque Wrench: Once the bolt is hand-tightened, use a torque wrench to achieve the specified torque value. The torque value will depend on the specific application, so refer to your vehicle manual or manufacturer's specifications. Gradually increase the torque in small increments, following a crisscross or star pattern to evenly distribute the load. This helps ensure that the wheel or component is secured properly without warping or damaging the hub.
Final Check: After reaching the specified torque value, double-check the tightness of all the bolts using the torque wrench. This step ensures that all bolts are equally tightened to the recommended torque.
Reassembly: If you are installing a wheel, you can now mount the tire onto the hub and secure it using the other lug nuts or bolts. Tighten these nuts or bolts in a star or crisscross pattern as well, and torque them to the manufacturer's specifications.
